MSD Platinum 25 R 1CT/8    Philips 34309-5 928495905314
MSD Platinum 25 R UNP/24 Philips 34166-9 928495905308

Discounts available, depending on quantity .....
Call 516.766.2266  - or -  E-mail:

Cross Ref:
MSD Platinum 25 R 1CT/8 Philips 34309-5 928495905314
MSD Platinum 25 R UNP/24 Philips 34166-9 928495905308
LMSDPlat25R-P
8718699614034

Quantity Per Case: 1

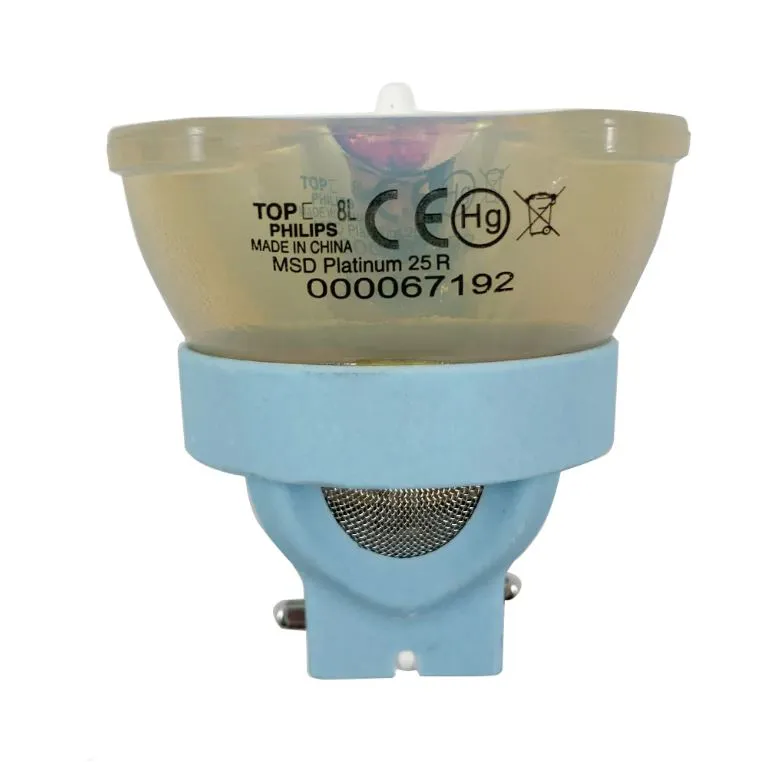

The Philips MSD Platinum is a compact and powerful lamp which is perfect for small and lightweight fixtures. It features a short arc, high colour temperature and an innovative reflector which produces a sparkling, high beam intensity for outstanding colour reproduction.

General Information
Operating Position
UNIVERSAL [ Any or Universal (U)]
Main Application Stage/Touring
Life to 50% Failures (Nom) 1500 h
Light Technical Color Code 2
Luminous Flux (Min) 22100 lm
Luminous Flux (Nom) 24500 lm
Chromaticity Coordinate X (Max) 313
Chromaticity Coordinate X (Min) 280
Chromaticity Coordinate X (Nom) 297
Chromaticity Coordinate Y (Max) 316
Chromaticity Coordinate Y (Min) 289
Chromaticity Coordinate Y (Nom) 303
Correlated Color Temperature (Nom) 8000 K
Luminous Efficacy (rated) (Nom) 44 lm/W
Operating and Electrical
Power (Rated) (Nom) 550 W
Voltage (Max) 115 V
Voltage (Min) 85 V
Controls and Dimming
Dimmable Yes
Luminaire Design Requirements
Pinch Temperature (Max) 350 °C
Product Data
Full product code 871869961403400
Order product name MSD Platinum 25 R 1CT/8
EAN/UPC - Product 8718699614034
Order code 928495905314
Numerator - Quantity Per Pack 1
Numerator - Packs per outer box 8
Material Nr. (12NC) 928495905314
Net Weight (Piece) 108.000 g

- MSD PLATINUM 25 R
- Order Code: 343095, 684207, 34309-5, 68420-7
- Full Order Code: 9284 959 05314, 928495905314
- UPC/EAN: 08718699614034, 8718699614034
